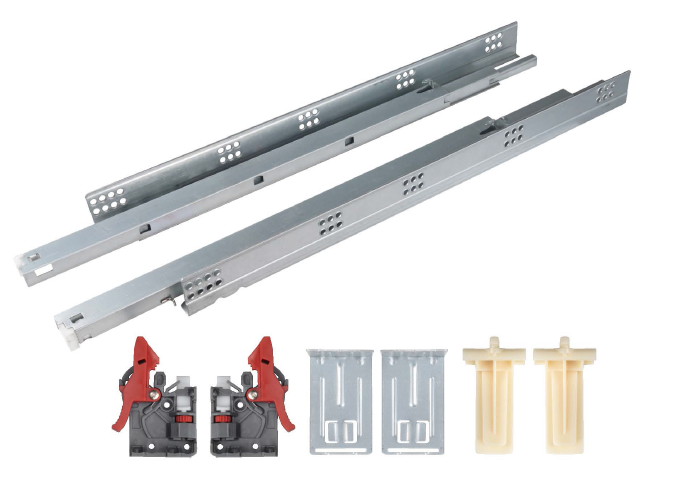

BC1A-16 Soft-close Full Extension Concealed Slide with locking device and rear bracket

Previous Next

For max.16mm(5/8″) drawer side thickness

Verified by ANSI/BHMA

With locking device and rear mounting bracket

> Material:SGCC

> Material thickness:1.0x1.5x1.8mm

> For 16mm(5/8″)max.drawer side thickness

> Dynamic load capacity:75lb/35kg

> Static load capacity:100lb/45kg

> 2-way adjustment,adjustable for 0-3mm

> Soft close function

Item No.	Nominal Length NL(mm)	Travel Length(mm)	Max drawer side thickness (mm)	Min. cabinet depth LT(mm)	Max. cabinet depth LT (mm)	Packing quantity(Pairs/Carton)
BC1A-16-381	381(15’’)	365(14-3/8’’)	16（5/8”）	416(16-3/8’’）	435(17-1/8’’)	8
BC1A-16-457	457(18’’)	441(17-3/8’’)	16（5/8”）	492(19-3/8’’)	511(20-1/8’’)	8
BC1A-16-533	533(21’’)	518(20-3/8’’)	16（5/8”）	568(22-3/8’’)	587(23-1/8’’)	8
